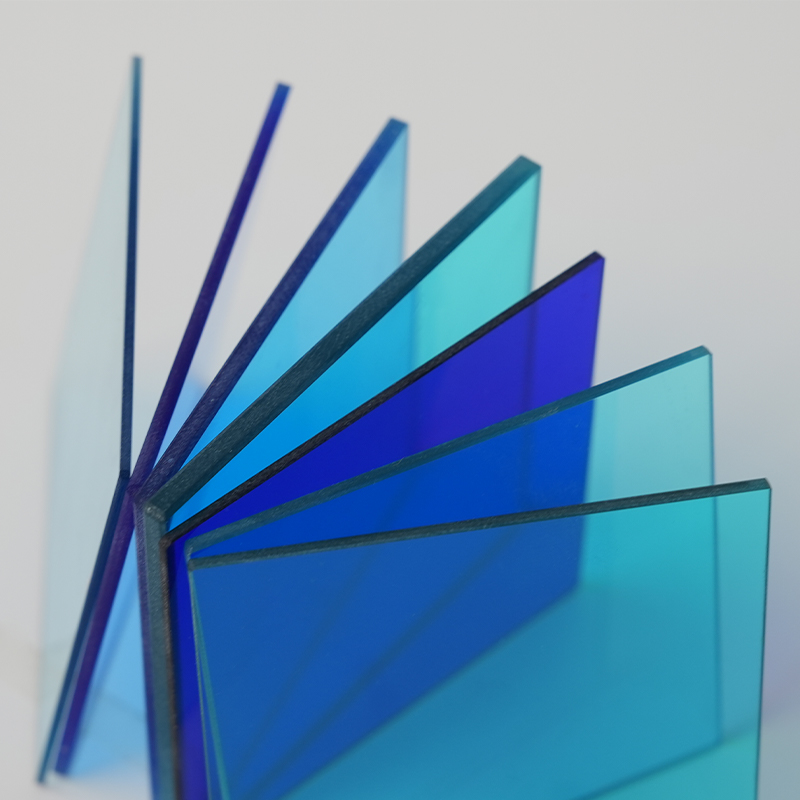

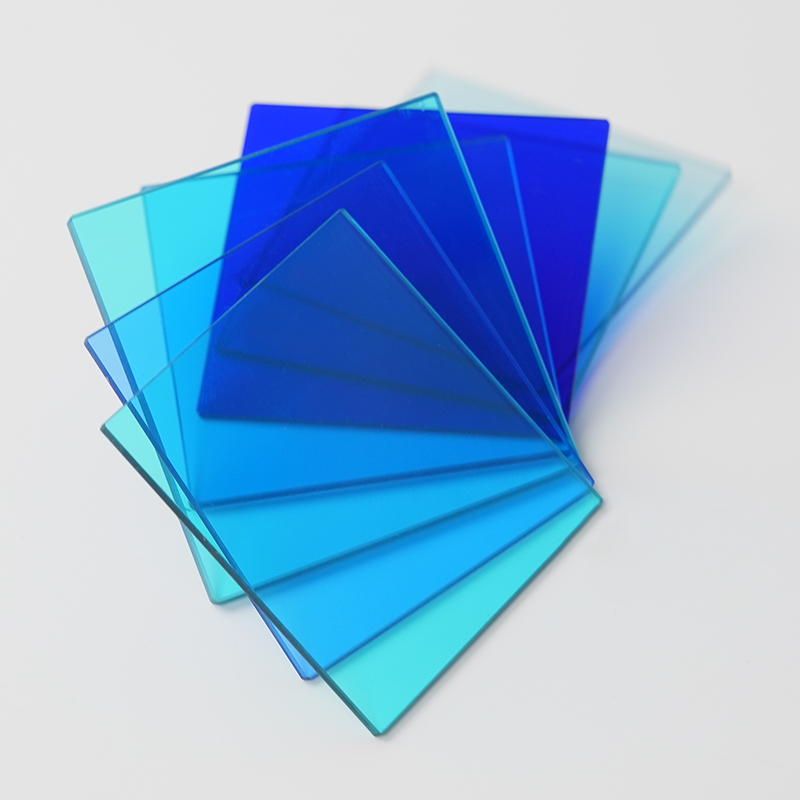

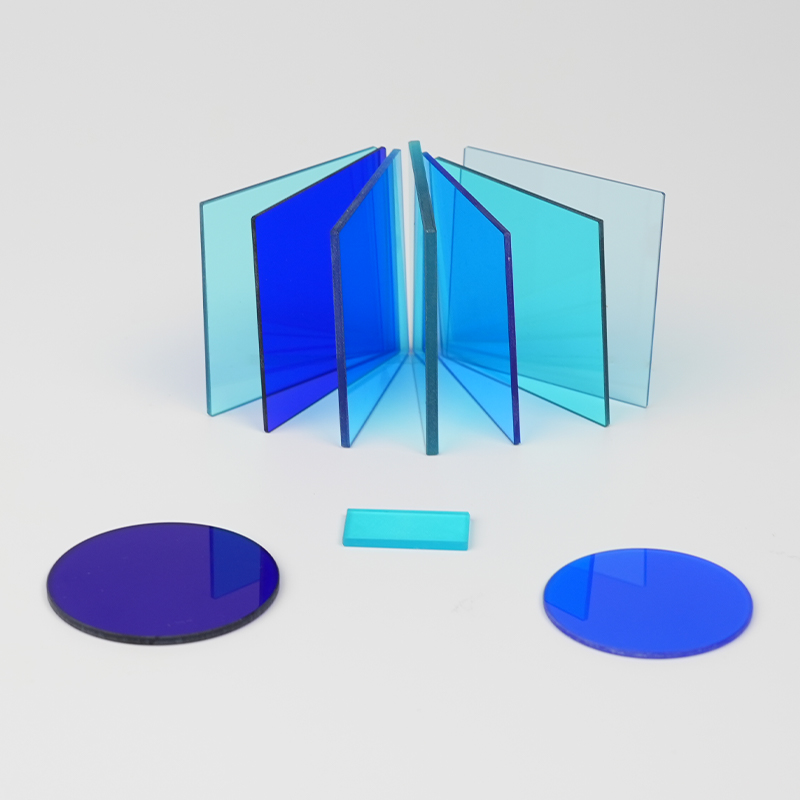

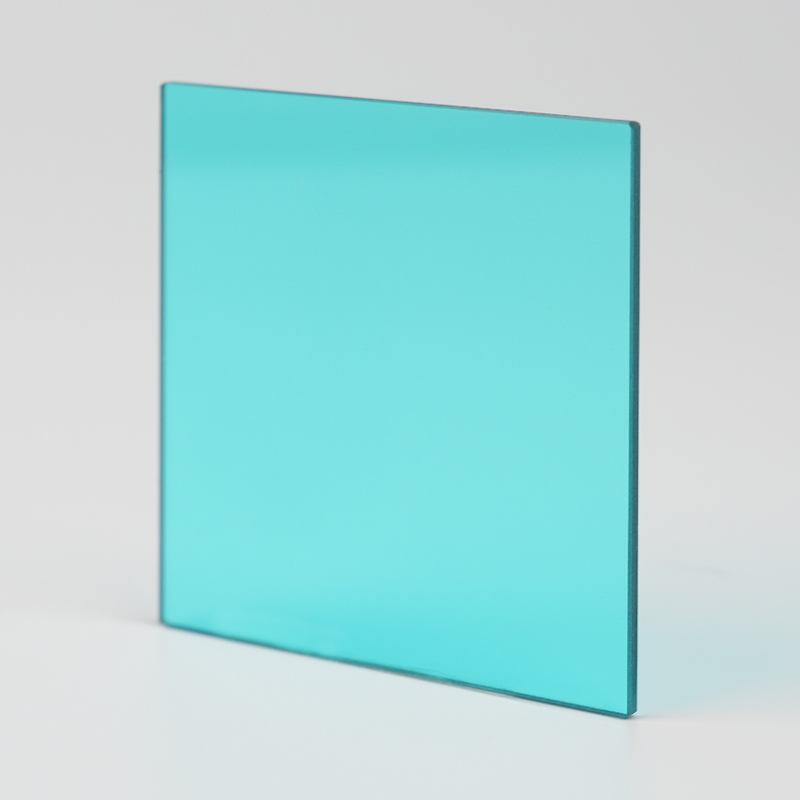

Cyan-Blue Selective Absorption Glass Filters

Ang Cyan-Blue Selective Absorption Glass Filter ay mga optical filter na epektibong sumisipsip ng liwanag sa cyan at blue wavelength range.  Idinisenyo ang mga ito upang piliing i-filter ang cyan at asul na liwanag habang pinapayagan ang iba pang wavelength ng liwanag (gaya ng pula at berde) na dumaan. Pangunahing ginagamit ang mga filter na ito sa mga application na nangangailangan ng pagsugpo sa cyan at asul na ilaw at pag-optimize ng spectral na tugon, at malawakang ginagamit sa iba't ibang larangan tulad ng optical imaging, pagwawasto ng kulay, pagsusuri ng spectral, at pagsubaybay sa kapaligiran.

  • Cyan-Blue Selective Absorption Glass Filters
  • Cyan-Blue Selective Absorption Glass Filters
  • Cyan-Blue Selective Absorption Glass Filters
  • Cyan-Blue Selective Absorption Glass Filters
  • Cyan-Blue Selective Absorption Glass Filters
  • Cyan-Blue Selective Absorption Glass Filters
  • Cyan-Blue Selective Absorption Glass Filters
  • Cyan-Blue Selective Absorption Glass Filters
  • Cyan-Blue Selective Absorption Glass Filters
  • Cyan-Blue Selective Absorption Glass Filters
  • Cyan-Blue Selective Absorption Glass Filters
  • Cyan-Blue Selective Absorption Glass Filters
  • Cyan-Blue Selective Absorption Glass Filters
  • Cyan-Blue Selective Absorption Glass Filters
  • Cyan-Blue Selective Absorption Glass Filters
  • Cyan-Blue Selective Absorption Glass Filters
  • Cyan-Blue Selective Absorption Glass Filters
  • Cyan-Blue Selective Absorption Glass Filters
PREV：Green Optical Filter Glass   |    SUSUNOD：Cyan-Blue Infrared-Absorbing Glass Filter

+ Makipag-ugnayan sa amin

Mga Parameter ng Produkto

1-1. Mga katangian

Numero Kapal (mm) A[2856k] D65 Katatagan ng kemikal ND α×10-7(/℃) Tg(℃) Ts(℃) S
x y Y x y Y DA DW

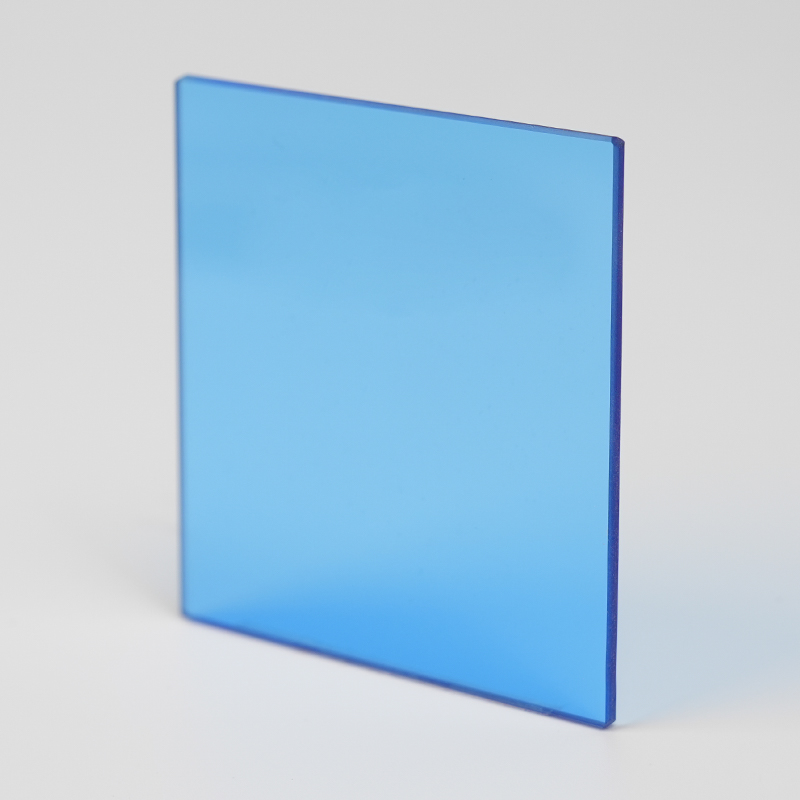

QB1 2 0.354 0.379 44.8 0.235 0.258 49 1 3 1.52 93 477 550 2.51

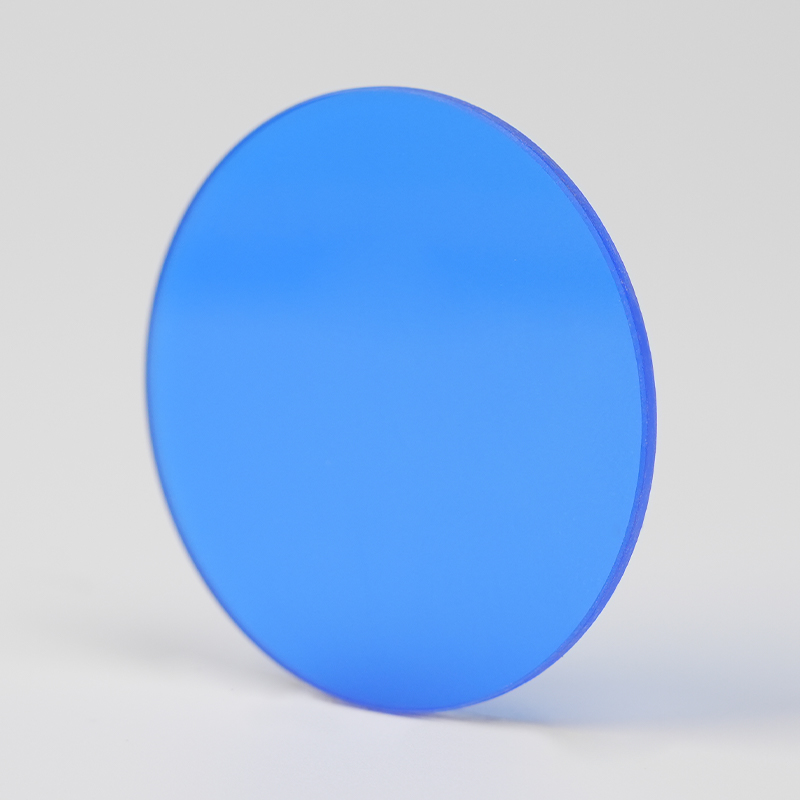

QB2 2 0.322 0.334 28.8 0.21 0.206 32.6 1 3 1.52 93 477 550 2.51

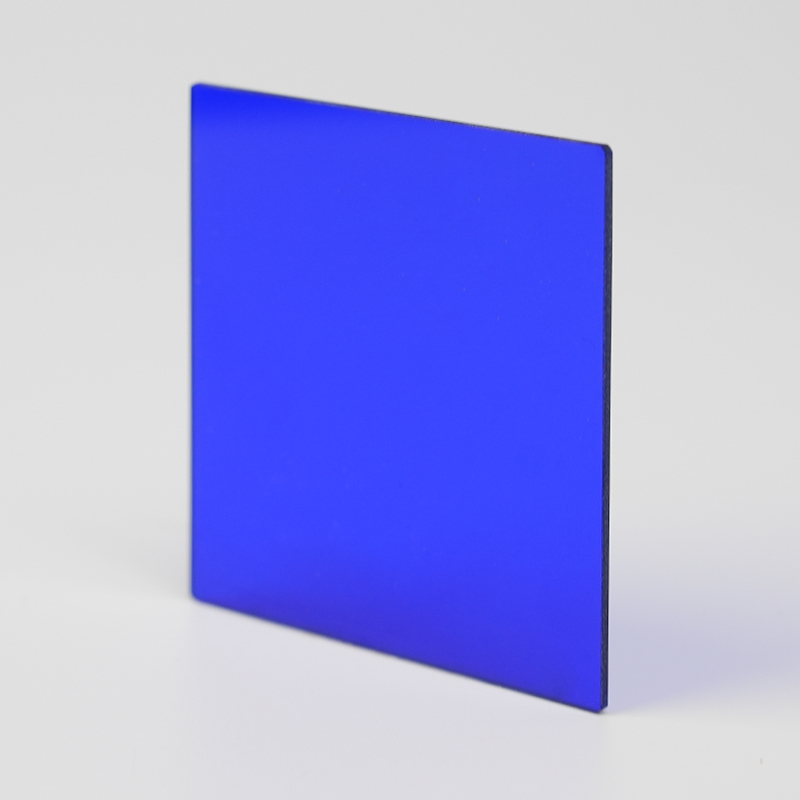

QB3 2 0.159 0.042 0.8 0.156 0.028 1.8 1 3 1.52 91 525 577 2.51
QB4 2 0.143 0.101 3 0.145 0.063 5.8 1 3 1.582 81 483 549 3.25

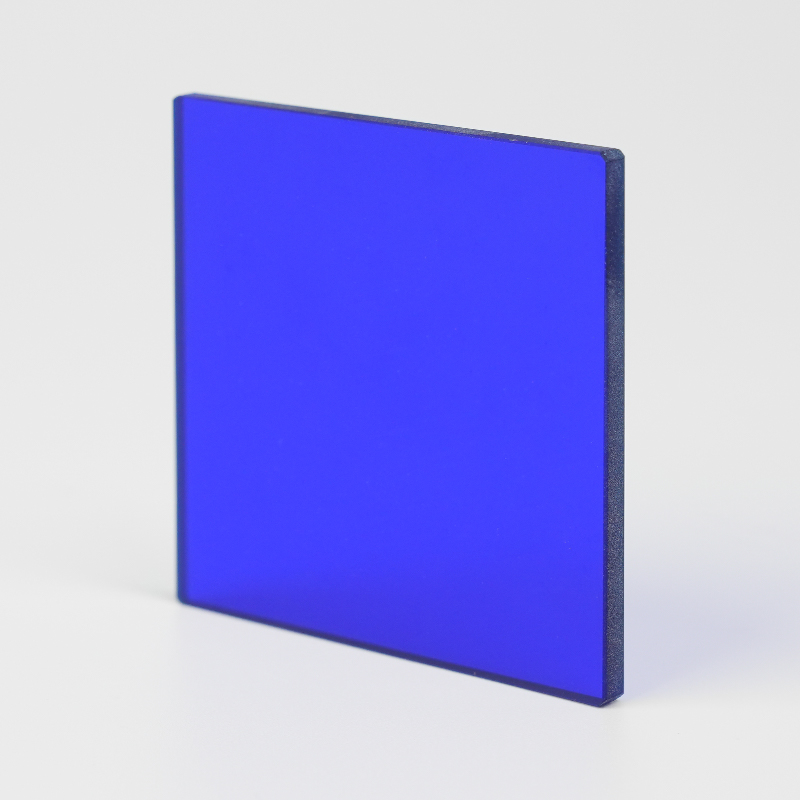

QB5 2 0.143 0.106 2.8 0.146 0.065 5.2 1 2 1.52 93 477 550 2.52

1-2. Mga Kinakailangang Teknikal

Numero Kapal (mm) 400(nm) 420(nm) 450(nm) 540(nm) 600(nm) 640(nm) 680(nm) 700(nm)
QB1 2 ≥84.0 44.0~50.0 21.0~27.0 34.0~42.0
QB2 2 ≥84.0 22.0~36.0 10.0~21.0
QB3 2 ≥40.0 ≤0.4 ≤3.0
QB4 2 ≥66.7 ≤1.2 ≤19.7
QB5 2 ≥58.0 ≤5.0 ≤2.0

1-3. Pagmamarka para sa Mga Bubble, Streak, at Stress Mark

Numero Bubble Mga guhit Stress
QB1 C - B 3C 3
QB2 C - B 3C 3
QB3 C - B 4 3
QB4 C - B 4 3
QB5 C - B 4 3

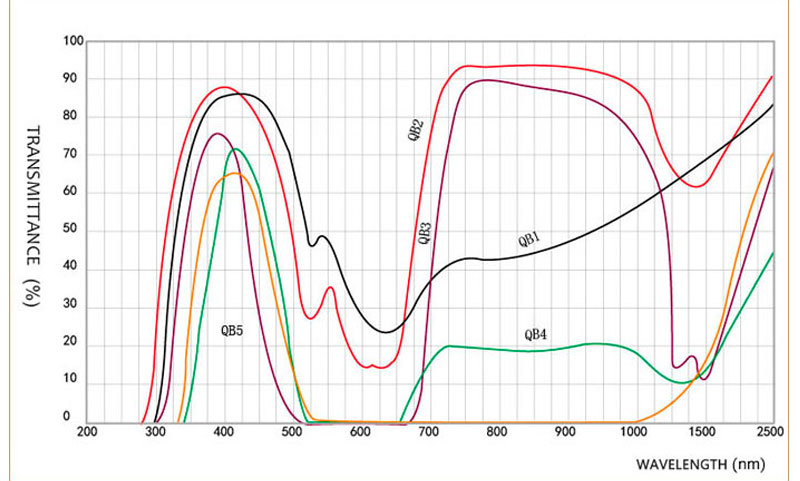

1-4. Spectral Diagram

2-1. Mga katangian

Numero Kapal (mm) A[2856k] D65 Katatagan ng kemikal ND α×10-7(/℃) Tg(℃) Ts(℃) S
x y Y x y Y DA DW

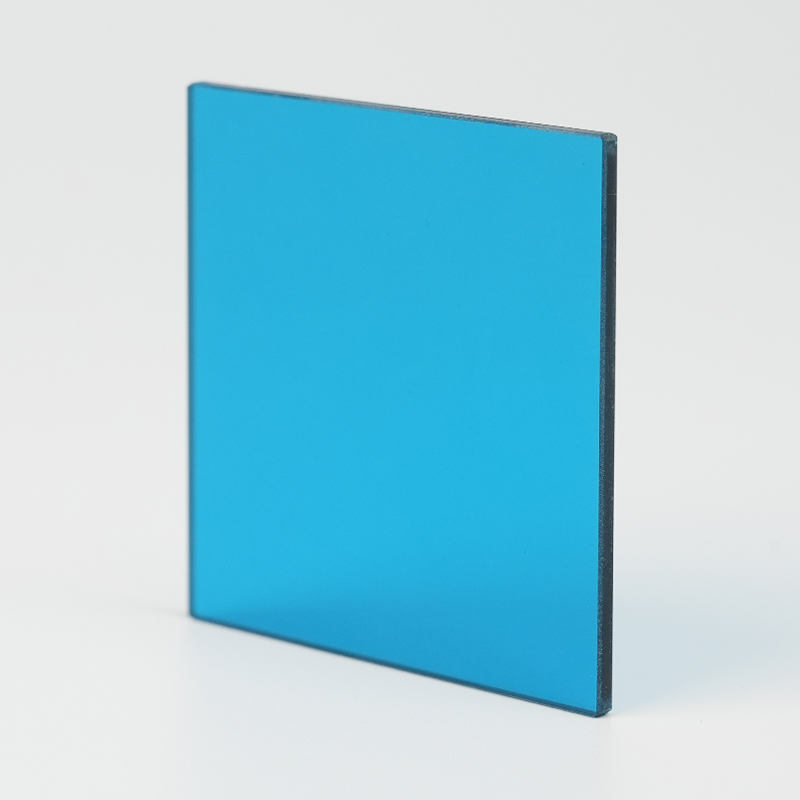

QB9 2 0.187 0.391 14.8 0.156 0.256 20.3 1 2 1.524 89 460 532 2.56

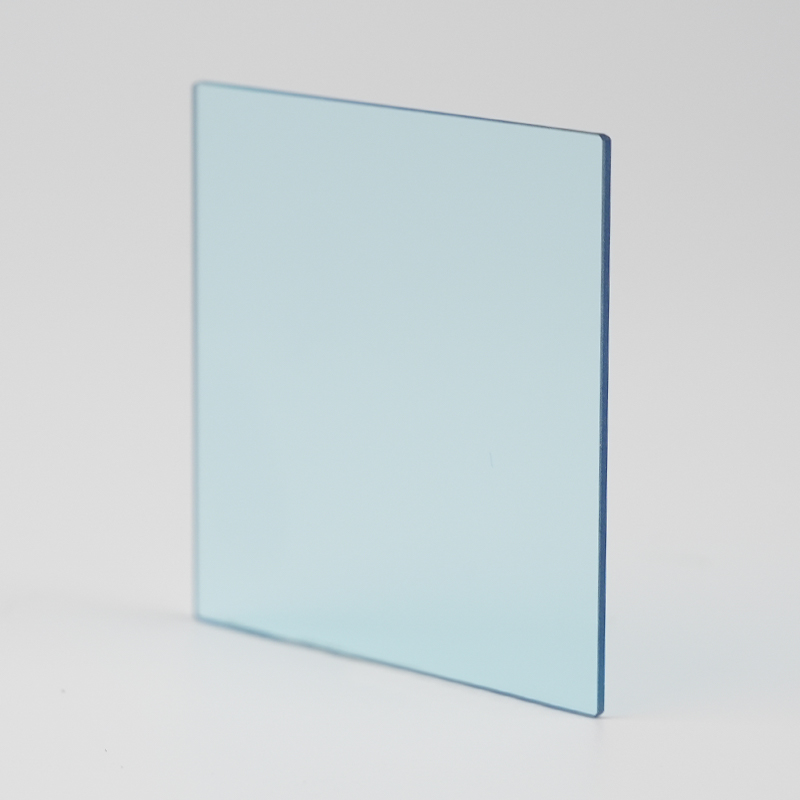

QB10 2 0.409 0.417 74.4 0.283 0.324 76.6 1 2 1.529 84 540 606 2.63

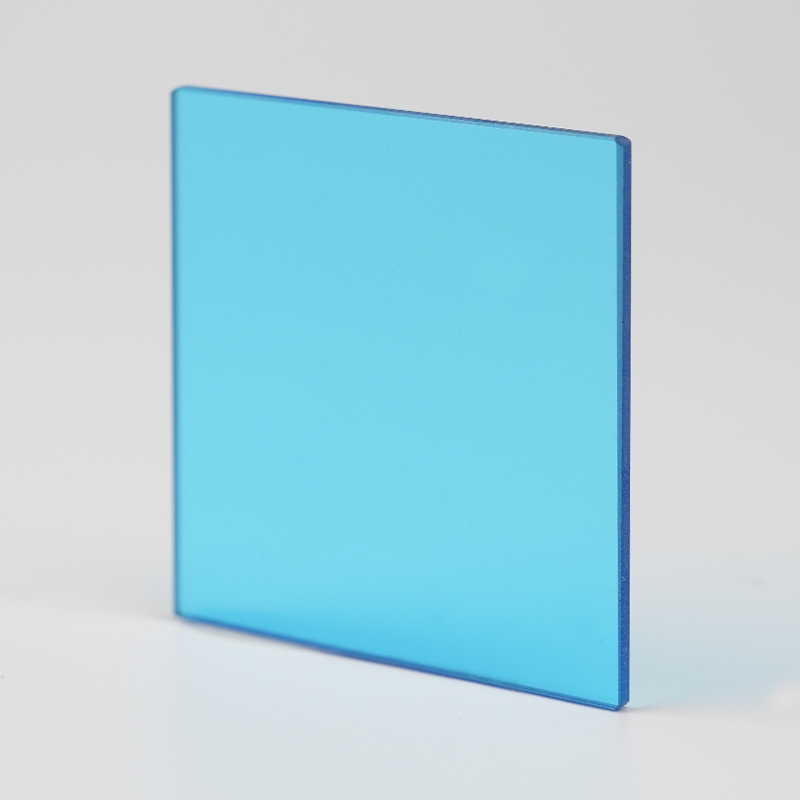

QB11 2 0.328 0.412 52 0.226 0.29 59.1 1 2 1.514 93 477 550 2.57

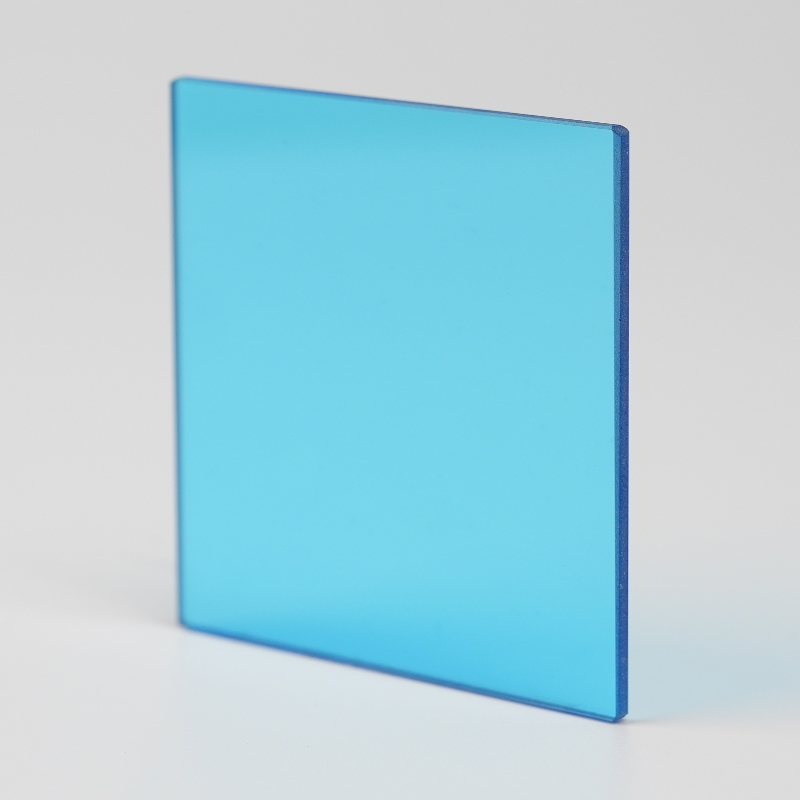

QB12 2 0.269 0.406 36.2 0.194 0.271 44.2 1 2 1.517 91 506 572 2.59

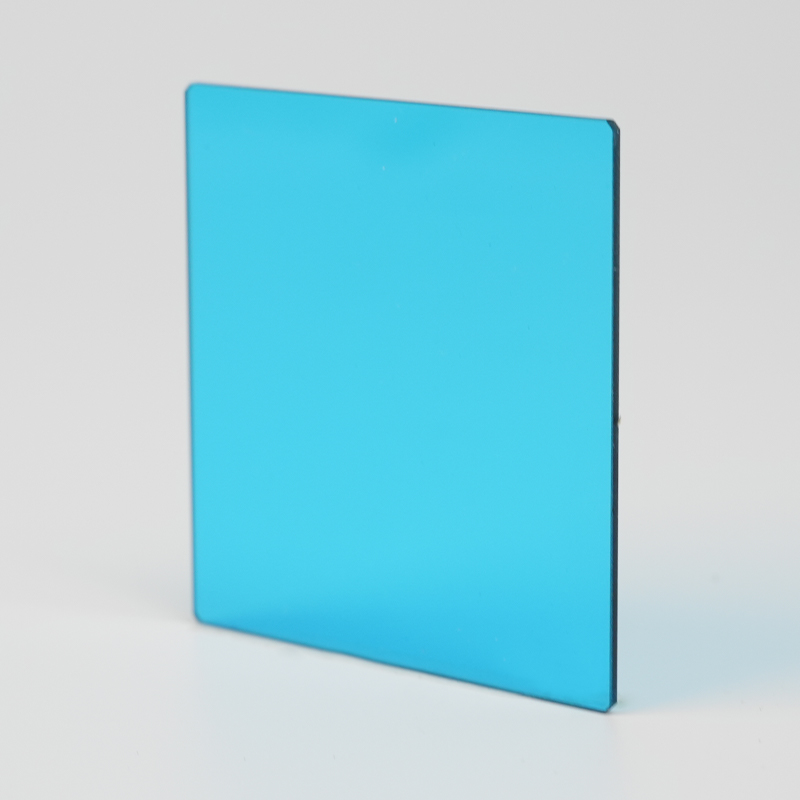

QB13 2 0.189 0.377 17.3 0.157 0.242 23.7 1 2 1.522 90 490 555 2.61

2-2. Mga Kinakailangang Teknikal

Numero Kapal (mm) 400(nm) 480(nm) 640(nm) 680(nm) 700(nm) 1000(nm)
QB9 2 ≥10.0 ≥36.5 ≤1.0
QB10 2 ≥76.0 23.0~31.0 ≤5.0
QB11 2 ≥80.0 ≥83.8 5.5~11.6
QB12 2 ≥63.5 ≥76.4 ≤0.7
QB13 2 ≥20.0 ≥51.5 ≤0.2

2-3. Pagmamarka para sa Mga Bubble, Streak, at Stress Mark

Numero Bubble Mga guhit Stress
QB9 C - B 4 3
QB10 D 3C 3
QB11 C - B 3C 3
QB12 C - B 3C 3
QB13 C - B 3C 3

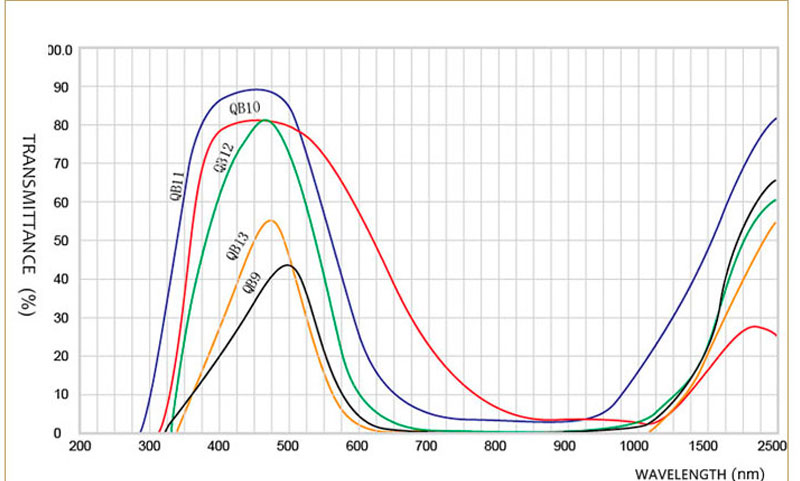

2-4. Spectral Diagram
